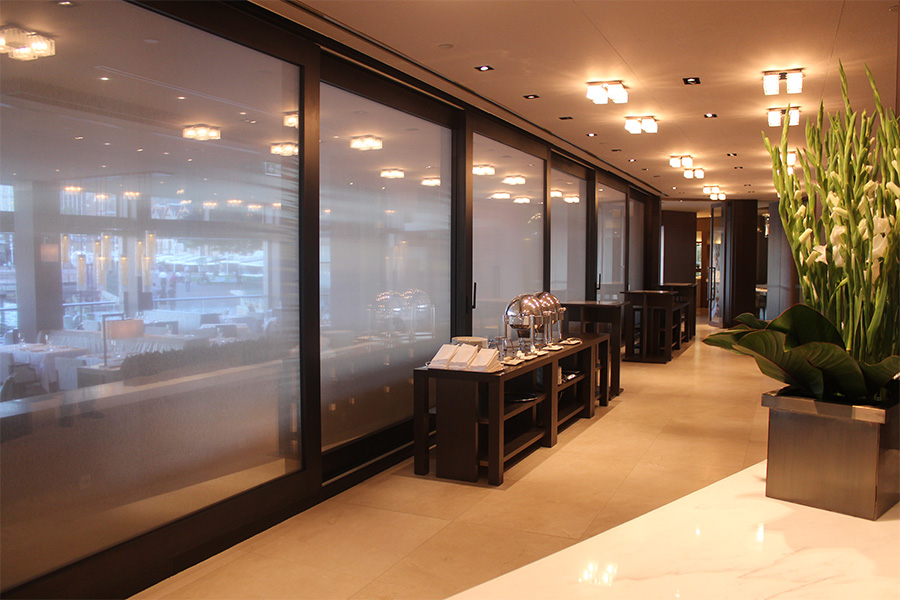

Stacker Lift-Slide Doors

Architectural Timber

Stacker-doors_Combination

Specifications

  • IV 78mm timber frame, triple glazed with 2x 12-16mm argon filled gap
  • IV 68mm timber frame, double glazed with 1x 14-20mm argon filled gap
  • Choice of glass combinations
  • German lift and slide hardware

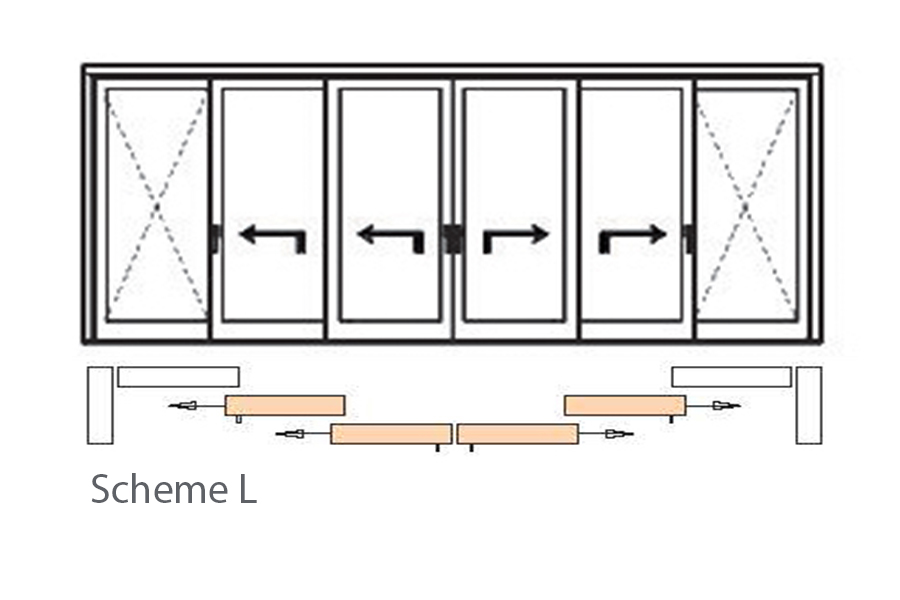

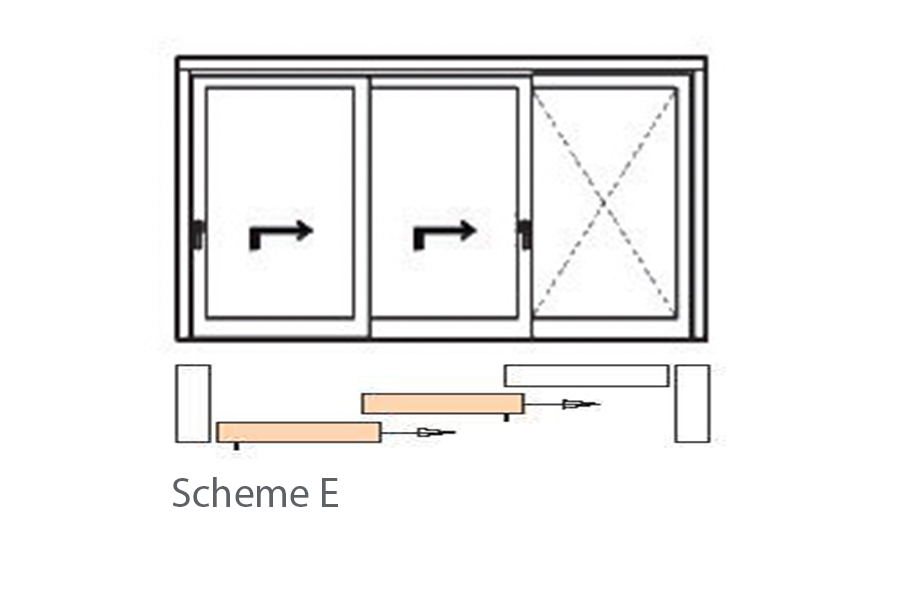

  • Custom made to Scheme E and Scheme L configurations
  • Low VOC spray-painted or stained in the colour of your choice
  • Multi-layer seals and night vent
  • High energy efficiency and sound-protection, draft proof
  • Suited for bushfire areas up to and including BAL-29, and for Passive House

Size:

  • Weight up to 300kg per slider
  • Width up to 14m

WERS energy rating: U-value from a very low 1.0

Door Configurations

Technologically advanced stacker lift-slide sliding doors are available in following configurations:

For additional configurations please contact us.
