Shaped Windows

Wood-Alu Range



  • Internal IV 68mm timber frame, low VOC spray-painted or stained in the colour of your choice
  • External aluminium cladding powder-coated in a wide range of colours
  • Timber and cladding separated by 3mm clip system to stop condensation and subsequent rot
  • Triple glazed 2x up to 16mm or double glazed 1x up to 22mm argon filled gap
  • Choice of glass combinations
  • Custom made

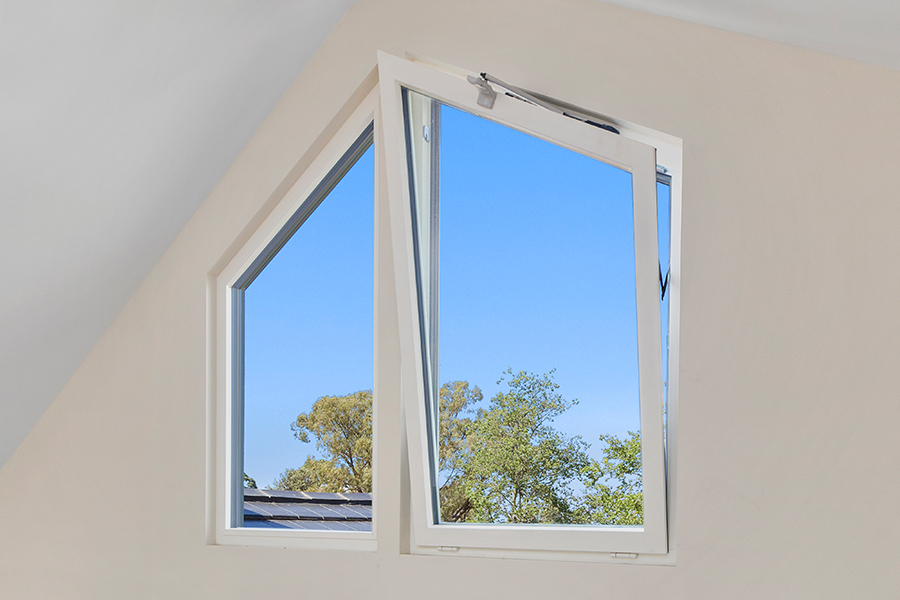

  • German tilt and turn fittings, multi-point locking
  • Seals to eliminate drafts
  • Childproof available
  • Also fixed shapes/picture windows available
  • Suited for bushfire areas up to and including BAL-29, and for Passive House


  • Minimum 600mm height x 600mm width
  • Width up to 1400mm at min height of 1500mm, max 2100mm
  • Height up to 2700mm at max width of 1000mm
  • Angled shapes only, for rounded shapes please see Architectural Timber Windows - Shaped

WERS energy rating: from a very low 1.0
